Introduction to Databases and Persistence

Application data that lives inside a container is ephemeral - it only persists for the lifetime of the container. We can use databases to extend the life of our application (or user) data, and even access it from outside the container.

After going through this module, students should be able to:

• Explain the differences between SQL and NoSQL databases

• Choose the appropriate type of database for a given application / data set

• Start and find the correct port for a Redis server

• Install and import the Redis Python library

• Add data to and retrieve data from a Redis database from a Python script

• Design Principles: Separating the database service from the application container is a great example illustrating the modularity design principle.

What Is Our Motivation?

In this unit, we will begin the work to extend our FastAPI API to enable users to query and analyze data in our data sets. We want to expose this functionality through our FastAPI API, but there is an issue: the analysis to be performed may take “a long time” to compute, longer than the acceptable time window for an HTTP request/response cycle. We need a way to coordinate the work of computing the analysis in a separate Python program from our FastAPI API. The database will play a central role.

Our basic approach will be:

1. Our dataset will be stored in a database.

2. The user submits a request to a FastAPI endpoint describing some sort of analysis they wish to perform on the data.

3. We will create a separate Python program to perform the analysis. This program will retrieve the desired data from the database and store the final results in the database.

4. The FastAPI API will determine the status of the analysis by querying the database, and it will retrieve the final results of the analysis from the database to serve to the user when they are ready.

There are a lot of details to fill in over the course of the rest of the semester, but for now we are going to focus on getting data into and out of a database.

Intro to Databases

What is a database?

• A database is an organized collection of structured information, or data, typically stored electronically in a computer system.

• Databases provide a query language - a small, domain-specific language for interacting with the data. The query language is not like a typical programming language such as Python or C++; you cannot create large, complex programs with it. Instead, it is intended to allow for easy, efficient access to the data.

Why use a database?

• Our data needs permanence and we want to be able to stop and start our FastAPI API without losing data.

• We want multiple Python processes to be able to access the data at the same time, including Python processes that may be running on different computers.

Why not use a file?

• It is not easy to make a file accessible to Python processes on different computers / VMs.

• When multiple processes are reading from and writing to a file, race conditions can occur.

• With files, our FastAPI API would have to implement all the structure in the data.

Databases sometimes get classified into two broad categories: SQL databases (also called relational databases) and NoSQL databases.

SQL Databases

Structured Query Language (SQL) is a language for managing structured or relational data, where certain objects in the dataset are related to other objects in a formally or mathematically precise way. SQL is the language used when working with a relational database. You will often see SQL database technologies referred to as Relational Database Management Systems (RDBMS).

The SQL language is governed by an ISO standard, and relational databases are among the most popular databases in use today. SQL was originally based on a strong, theoretical framework called the Relational Model (and related concepts). However, today’s SQL has departed significantly from that formal framework.

Popular open-source RBDMS include:

• MySQL

• Postgres

• Sqlite

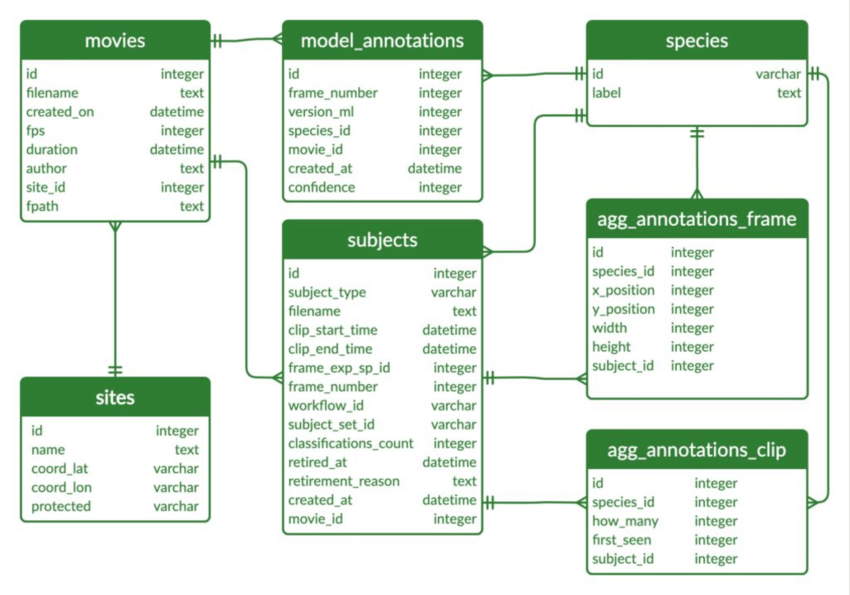

Example of a relational database. Source1

NoSQL Databases

As the name implies, a NoSQL database is simply a database that does not use SQL. There are many different types of NoSQL databases, including:

• Time series databases

• Document stores

• Graph databases

• Simple key-value stores (like the one we will use in this class)

In some ways, it is easier to say what a NoSQL database isn’t than what it is; some of the key attributes include:

• NoSQL databases do NOT use tables (data structured using rows and columns) connected through relations

• NoSQL databases store data in “collections”, “logical databases”, or similar containers

• NoSQL databases often allow for missing or different attributes on objects in the same collection

• Objects in one collection do not relate or link to objects in another collection

• For example, the objects themselves could be JSON objects without a pre-defined schema

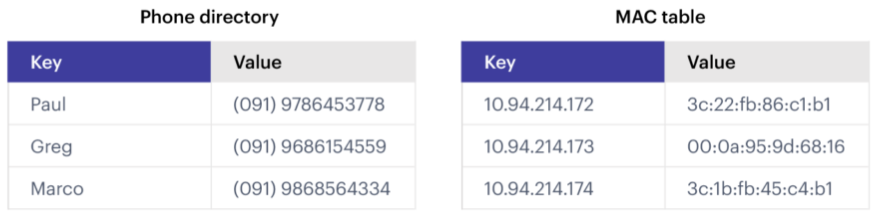

Example of a key-value database. Source2

SQL vs NoSQL

Comparing SQL and NoSQL is an apples to oranges comparison.

• Both SQL and NoSQL databases have advantages and disadvantages.

• The primary deciding factor should be the shape of the data and the requirements on the integrity of the data. In practice, many other considerations could come into play, such as what expertise the project team has.

• Also consider how the data may change over time, and how important is the relationship between the different types of data being stored.

• SQL databases “enforce” relationships between data types, including one-to-one, one-to-many, and many-to-many. When the integrity of the data is important, SQL databases are a good choice.

• In many NoSQL databases, the relationship enforcement must be programmed into the application. This can be error-prone and can increase the development effort needed to build the application. On the other hand, this can allow the database to be used for use cases where relationship enforcement is not possible.

• SQL databases historically cannot scale to the “largest” quantities of data because of the ACID (Atomicity, Consistency, Isolation, Durability) guarantees they make (though this is an active area of research).

• NoSQL databases trade ACID guarantees for weaker properties (e.g., “eventual consistency”) and greater scalability. It would be difficult to scale a relational database to contain the HTML of all websites on the internet or even all tweets ever published.

ACID Properties

A - Atomicity “All or Nothing” — the entire transaction succeeds or the whole thing is rolled back. Transferring money between bank accounts — either both debit & credit succeed, or neither happens.

C - Consistency Data must always move the database from one valid state to another. A transaction can’t leave the database in an invalid state. After a money transfer, both account balances should reflect the right amounts — no negative balances unless the system allows overdrafts.

I - Isolation Transactions should not interfere with each other, even if they happen at the same time. If two people try to buy the last ticket for a concert at the same time, only one should succeed — transactions shouldn’t “step on each other’s toes.”

D - Durability Once a transaction is committed, it’s permanent, even if there’s a crash or power loss. After you confirm a hotel booking, that reservation is safely stored — even if the server crashes right after.

Quick Analogy

Imagine you’re ordering food online — the ACID properties make sure:

• Atomicity: Your payment and order both succeed, or neither does (you aren’t charged without an order placed).

• Consistency: The restaurant’s inventory reflects your order — if you order a burger, the burger count goes down by 1.

• Isolation: If two people order the last burger at the same time, only one actually gets it.

• Durability: Even if the system crashes, your order stays confirmed.

For the projects in this class, we are going to use Redis, a simple (NoSQL) “data structure” store. There are a few reasons for this choice:

• We need a flexible data model, as the structure of the data we will store in the database will be changing significantly over the course of the semester.

• We need a tool that is quick to learn and simple to use. This is not a databases course, and learning the SQL language would take significantly more time than we can afford.

• Redis can also easily be used as a task queue, which we will make use of in the asynchronous programming unit.

In a Nutshell

When to use SQL

• Structured Data with Clear Relationships

  If your data has a fixed schema (tables with columns and rows) and relationships between tables (foreign keys), SQL is great.

• Transactions are Critical

  If you need strong consistency and ACID compliance (Atomicity, Consistency, Isolation, Durability), SQL databases like PostgreSQL or MySQL are the go-to.

• Data Integrity Matters a Lot

  When you need constraints (like unique values, foreign key enforcement, or type checks) SQL databases shine.

• Analytics and Complex Queries

  SQL is excellent when you need to join tables, filter, aggregate, or run complex queries across datasets.

• Standardized Reporting

  If your business relies heavily on structured reporting and analysis, SQL’s mature querying (like GROUP BY, JOIN, etc.) fits well.

When to use NoSQL

• Flexible or Evolving Schema

  If your data structure changes often (new fields, nested data, etc.), NoSQL (like MongoDB or DynamoDB) is more forgiving.

• Massive Scale with Simple Queries

  If you have very large amounts of data and are optimizing for speed over complex querying, NoSQL (especially key-value or document stores) is often faster.

• High Throughput, Low Latency Needs

  For systems like caching, user sessions, or event logging, NoSQL can handle quick reads/writes with ease.

• Unstructured or Semi-Structured Data

  Documents, JSON blobs, logs, and sensor data are often a better fit for document or column-family stores than rigid tables.

• Horizontal Scaling

  NoSQL databases are typically designed for easier horizontal scaling (sharding/partitioning across servers) compared to SQL.

• Big Data & Distributed Systems

  If you’re building something like a recommendation engine, analytics pipeline, or IoT platform, NoSQL can shine.

Quick Rule of Thumb

If you need… * Strong consistency + relationships: SQL * High flexibility + scalability: NoSQL

Redis

Redis is a very popular NoSQL database and “data structure store” with lots of advanced features including:

Note

Before going any further, let’s play around with Redis a little bit in a browser: https://redis.io/try-free/ Try the commands SET, GET, HSET, HGET, KEYS, HKEYS

Key-Value Store

Redis provides key-value store functionality:

• The items stored in a Redis database are structured as key:value objects.

• The primary requirement is that the key be unique across the database.

• A single Redis server can support multiple databases, indexed by an integer.

• The data itself can be stored as JSON.

Notes about Keys

Redis keys have the following properties/requirements:

• Keys are often strings, but they can be any “binary sequence”.

• Long keys can lead to performance issues.

• A format such as <object_type>:<object_id> is a good practice.

Notes on Values

• Values are typed; some of the primary types include:

  • Binary-safe strings

  • Lists (sorted collections of strings)

  • Sets (unsorted, unique collections of strings)

  • Hashes (maps of fields with associated values; both field and value are type string)

• There is no native “JSON” type; to store JSON, one can use an encoding and store the data as a binary-safe string, or one can use a hash and convert the object into and out of JSON.

• The basic string type is a “binary-safe” string, meaning it must include an encoding.

  • In Python terms, the string is stored and returned as type bytes.

  • By default, the string will be encoded with UTF-8, but we can specify the encoding when storing the string.

  • Since bytes are returned, it will be our responsibility to decode using the same encoding.

Hash Maps

• Hashes provide another way of storing dictionary-like data in Redis

• The values of the keys are type string

Running Redis

To use Redis on your Jetstream VMs, we must have an instance of the Redis server running. We will use a containerized version of Redis that we each need to pull from Docker Hub:

# start the Redis server on the command line:
[coe332-vm]$ docker run -p 6379:6379 redis:7
1:C 27 Feb 2024 03:53:38.154 * oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
1:C 27 Feb 2024 03:53:38.154 * Redis version=7.4.2, bits=64, commit=00000000, modified=0, pid=1, just started
1:C 27 Feb 2024 03:53:38.154 # Warning: no config file specified, using the default config. In order to specify a config file use redis-server /path/to/redis.conf
1:M 27 Feb 2024 03:53:38.154 * monotonic clock: POSIX clock_gettime
1:M 27 Feb 2024 03:53:38.155 * Running mode=standalone, port=6379.
1:M 27 Feb 2024 03:53:38.156 * Server initialized
1:M 27 Feb 2024 03:53:38.156 * Ready to accept connections tcp

The Redis server is up and available on port 6379. Although we could use the Redis CLI to interact with the server directly, in this class we will focus on the Redis Python library so we can interact with the server from our Python scripts.

Warning

Pause for a minute to think about why we are running redis:7. In the terminal output, it looks like the actual version of Redis is version=7.4.2. What do you need to know about semantic versioning in order to future-proof your code?

To interact with this Redis server, open up another terminal and install the Redis Python library:

[coe332-vm]$ mkdir redis_testing
[coe332-vm]$ uv init
[coe332-vm]$ uv add redis json

Then open up an interactive Python interpreter to connect to the server:

[coe332-vm]$ python3
Python 3.10.12 (main, Nov 20 2023, 15:14:05) [GCC 11.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>

>>> import redis
>>>
>>> rd=redis.Redis(host='127.0.0.1', port=6379, db=<some integer>)
>>>
>>> type(rd)
<class 'redis.client.Redis'>

You’ve just created a Python client object to the Redis server called rd. This object has methods for adding, modifying, deleting, and analyzing data in the database instance, among other things.

Some quick notes:

• We are using the IP of the gateway (127.0.0.1) on our localhost and the default Redis port (6379).

• Redis organizes collections into “databases” identified by an integer index. Here, we are specifying db=<some integer>; if that database does not exist it will be created for us.

Working with Redis

We can create new entries in the database using the .set() method. Remember, entries in a Redis database take the form of a key:value pair. For example:

>>> rd.set('my_key', 'my_value')
True

This operation saved a key in the Redis server (db=0) called my_key and with value my_value. Note the method returned True, indicating that the request was successful.

We can retrieve it using the .get() method:

>>> rd.get('my_key')
b'my_value'

Note that b'my_value' was returned; in particular, Redis returned binary data (i.e., type bytes). The string was encoded for us (in this case, using Unicode). We could have been explicit and set the encoding ourselves. The bytes class has a .decode() method that can convert this back to a normal string, e.g.:

>>> rd.get('my_key')
b'my_value'
>>> type(rd.get('my_key'))
<class 'bytes'>
>>>
>>> rd.get('my_key').decode('utf-8')
'my_value'
>>> type( rd.get('my_key').decode('utf-8') )
<class 'str'>

Redis and JSON

A lot of the information we exchange comes in JSON or Python dictionary format. To store pure JSON as a binary-safe string value in a Redis database, we need to be sure to dump it as a string (json.dumps()):

>>> import json
>>> d = {'a': 1, 'b': 2, 'c': 3}
>>> rd.set('k1', json.dumps(d))
True

Retrieve the data again and get it back into JSON / Python dictionary format using the json.loads() method:

>>> rd.get('k1')
b'{"a": 1, "b": 2, "c": 3}'
>>> type(rd.get('k1'))
<class 'bytes'>
>>>
>>> json.loads(rd.get('k1'))
{'a': 1, 'b': 2, 'c': 3}
>>> type(json.loads(rd.get('k1')))
<class 'dict'>

Note

In some versions of Python, you may need to specify the encoding as we did earlier, e.g.:

>>> json.loads(rd.get('k1').decode('utf-8'))
{'a': 1, 'b': 2, 'c': 3}

Hashes

Hashes provide another way of storing dictionary-like data in Redis.

• Hashes are useful when different fields are encoded in different ways; for example, a mix of binary and unicode data.

• Each field in a hash can be treated with a separate decoding scheme, or not decoded at all.

• Use hset() to set a single field value in a hash or to set multiple fields at once.

• Use hget() to get a single field within a hash or to get all of the fields.

# set multiple fields on a hash
>>> rd.hset('k2', mapping={'name': 'Joe', 'email': 'wallen@tacc.utexas.edu'})

# set a single field on a hash
>>> rd.hset('k2', 'type', 'instructor')

# get one field
>>> rd.hget('k2', 'name')
b'Joe'

# get all the fields in the hash
>>> rd.hgetall('k2')
{b'name': b'Joe', b'email': b'wallen@tacc.utexas.edu', b'type': b'instructor'}

Tip

You can use rd.keys() to return all keys from a database, and rd.hkeys(key) to return the list of keys within hash ‘key’, e.g.:

>>> rd.hkeys('k2')
[b'name', b'email', b'type']

EXERCISE 1

Save the Meteorite Landings data (i.e., the Meteorite_Landings.json file from Unit 2/3) into Redis. Each landing data point should be stored as a single Redis object. Think about what data type you want to use in Redis for storing the data.

If needed, you can download the JSON file with the following command:

$ wget https://raw.githubusercontent.com/TACC/coe-332-sp25/refs/heads/main/docs/unit02/sample-data/Meteorite_Landings.json

EXERCISE 2

Check that you stored the data correctly:

• Check the total number of keys in your Redis database against the total number of objects in the JSON file.

• Read all of the landing objects out of Redis and check that each object has the correct fields.

EXERCISE 3

• Exit the Python interactive interpreter or kill the Python script that is running your Redis client. In a new Python session, re-establish the Redis client. What is in the database?

• Now kill the Redis container. Start the Redis container again. What is in the database?

Additional Resources

• Redis Docs

• Redis Python Library

• Try Redis in a Browser

• Semantic Versioning
